**For prints you can drop, twist and bend**
(v3 formula update 09/26/2024)

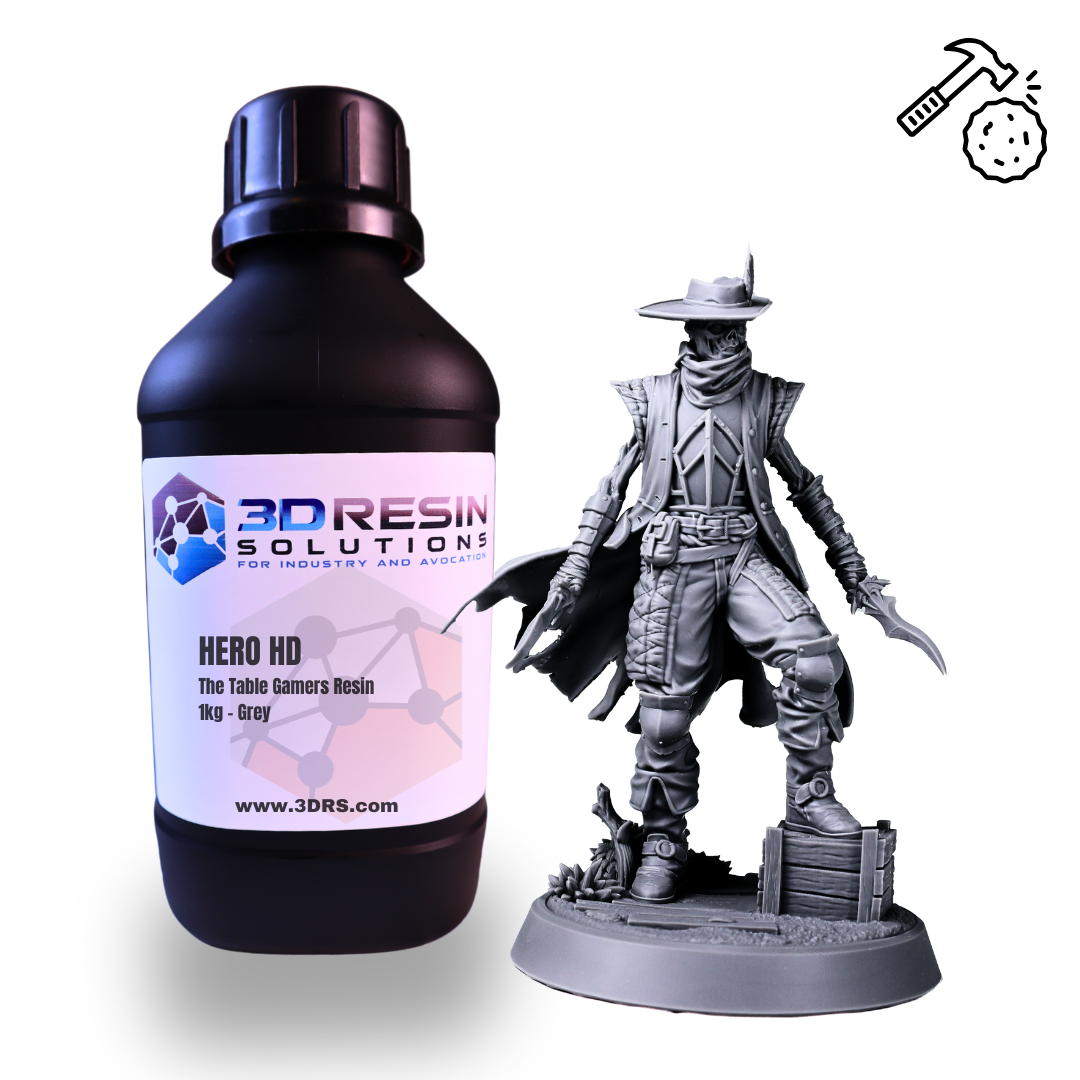

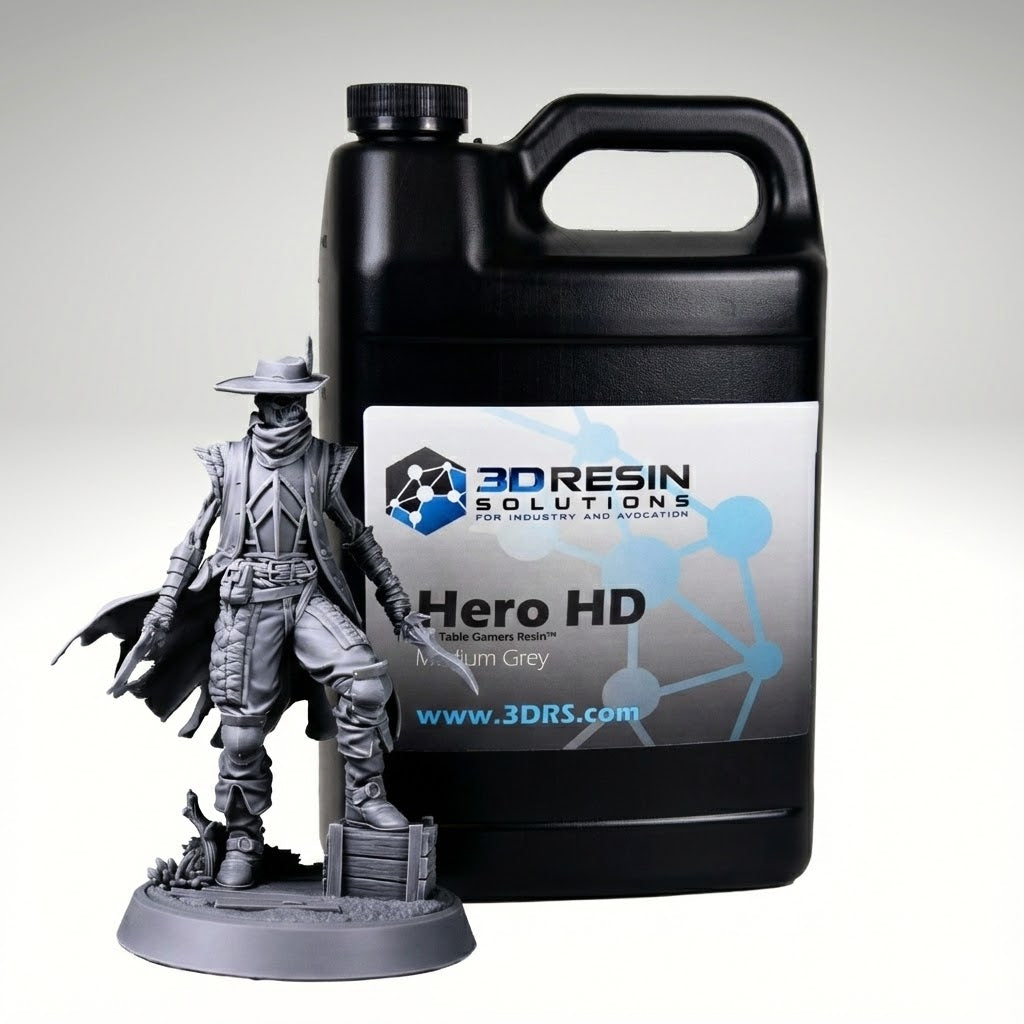

Introducing the NEW HERO HD 3D Printing Resin – the flagship Brand from 3DRS designed and manufactured in the USA has been updated for fast print speeds, toughness, and ABS style finish.
Rapid Printing! (2 - 3s normal exposure @ 50um)
No Settling! (V3 update)
Parts fit together with ease, very low shrink and warp!
Rigid Tough! Will not break easily!
High Green Strength for light support handling!
Extreme Detail!
Low Odor! (V3 update)
HERO 3D Printing Resin is formulated to provide above average strength and durability, making it ideal for creating long-lasting, weatherable prints that can withstand the rigors of everyday use.
Recommended for use with ACF Release liner to decrease Peele force:
Full list of starting settings on Elegoo Saturn 3 Ultra 12k using ACF Film.
| Burn In Layers |
|
| Burn In Layers |
10 |
| Burn In Exposure |
30s |
| Transition Layers |
20 |
| lift distance |
3 > 5 mm |
| Retract Distance |
5 > 3 mm |
| Lift speed |
60 > 180 mm/m |
| Retract Speed |
180 > 60 mm/m |
| Wait Before Print |
1s |
| Wait After print |
0 |
| Wait After Lfit |
0 |
| Light Intensity |
100 |
Normal Layers
|
|
| Layer Thickness |
50 um |
| Exposure Time |
2.2s |
| lift Distance |
3 > 4 mm |
| Retract Distance |
4 > 3 mm |
| lift speed |
80 > 180 mm/m |
| Retract Speed |
180 > 80 mm/m |
| Wait Before Print |
1 |
| Wait After Print |
0 |
| Wait After Lift |
0 |
| Light Intensity |
100 |
| Normal Layers |
|
| Layer Thickness |
100 um |
| Exposure Time |
3.5s |
| ASTM D638 Type IV |
|
| Work (j) |
3.80 - 4.5 |
| Tensile Strength (psi) |
3,100 - 3,500 |
| Elastic Modulus (psi) |
180,000 |
| Elongation at Break |
20-25% |
| Shore D |
70 |
| Shrink |
<2% |
| UV Peak Absorption: |
365nm - 395nm - 405nm |
NOTE: the final products printed with U.V Resins are not intended or acceptable for direct food contact and are not safe to place in the mouth, even when properly dried and cured. Do not print products for any person or pet who may chew on or otherwise orally ingest the product.
Download Safety Data Sheet HERE
Store & Usage:
1.Store in a cool DARK place between 18-28C - Keep container away from light exposure during storage to avoid light contamination.
2. Avoid any direct sunlight during usage.
3. Shake well before use.
4. After printing, please wash your print in alcohol with the content of above 90
5. Use at temperature 18-28C
