Pigment Refills
Download the Color Creator Worksheet and Check out the Pigment Set Tutorial

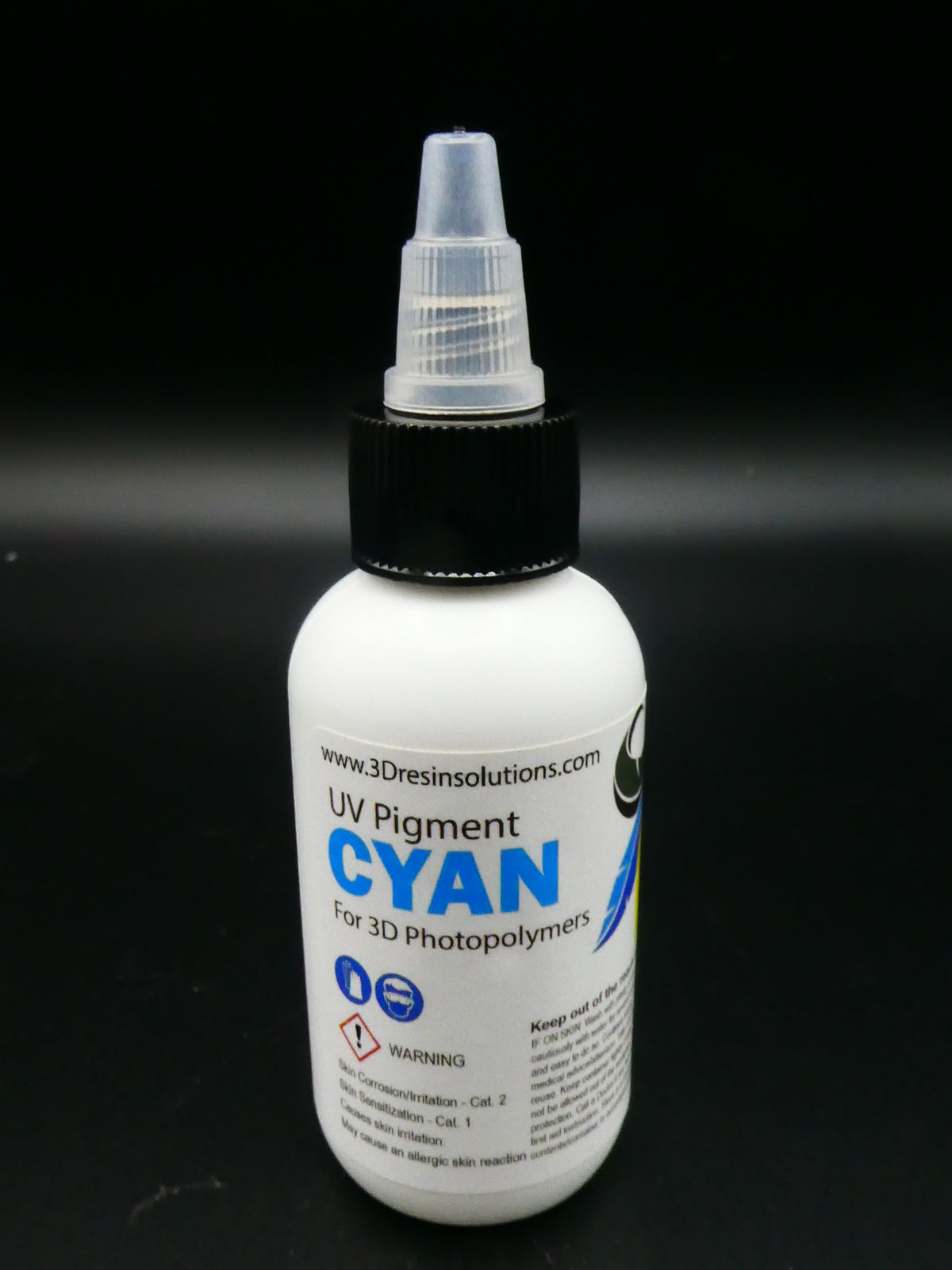

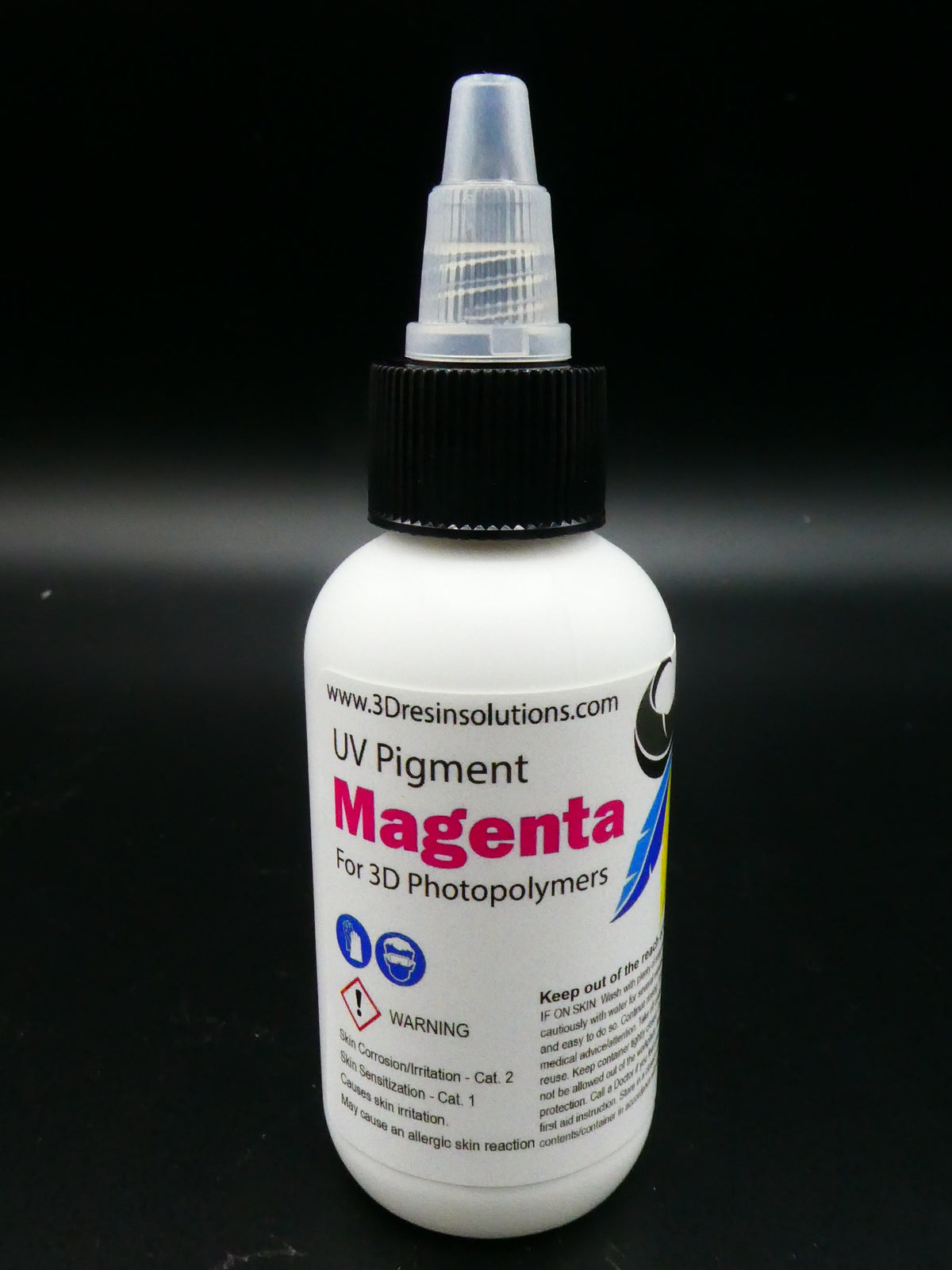

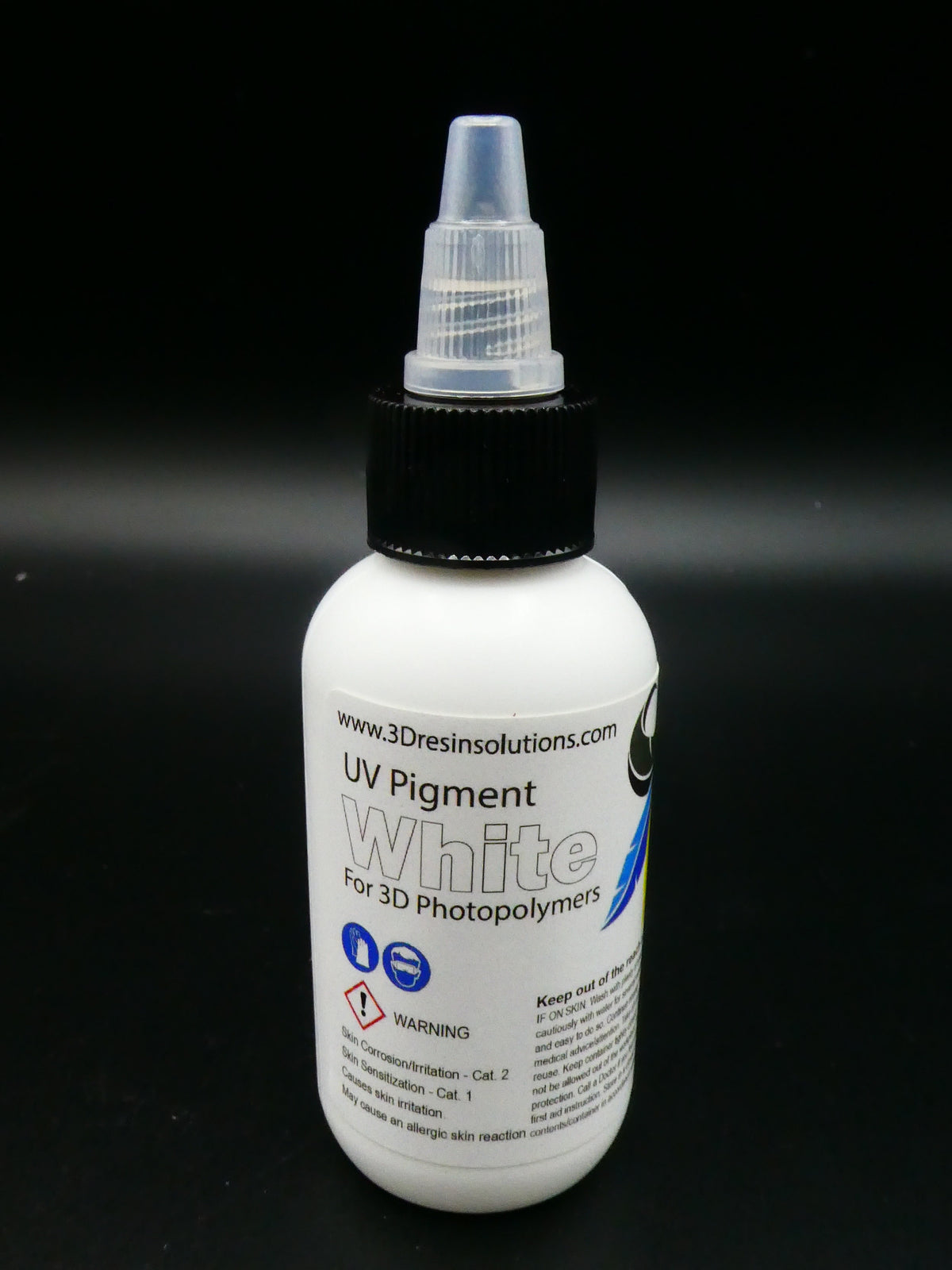

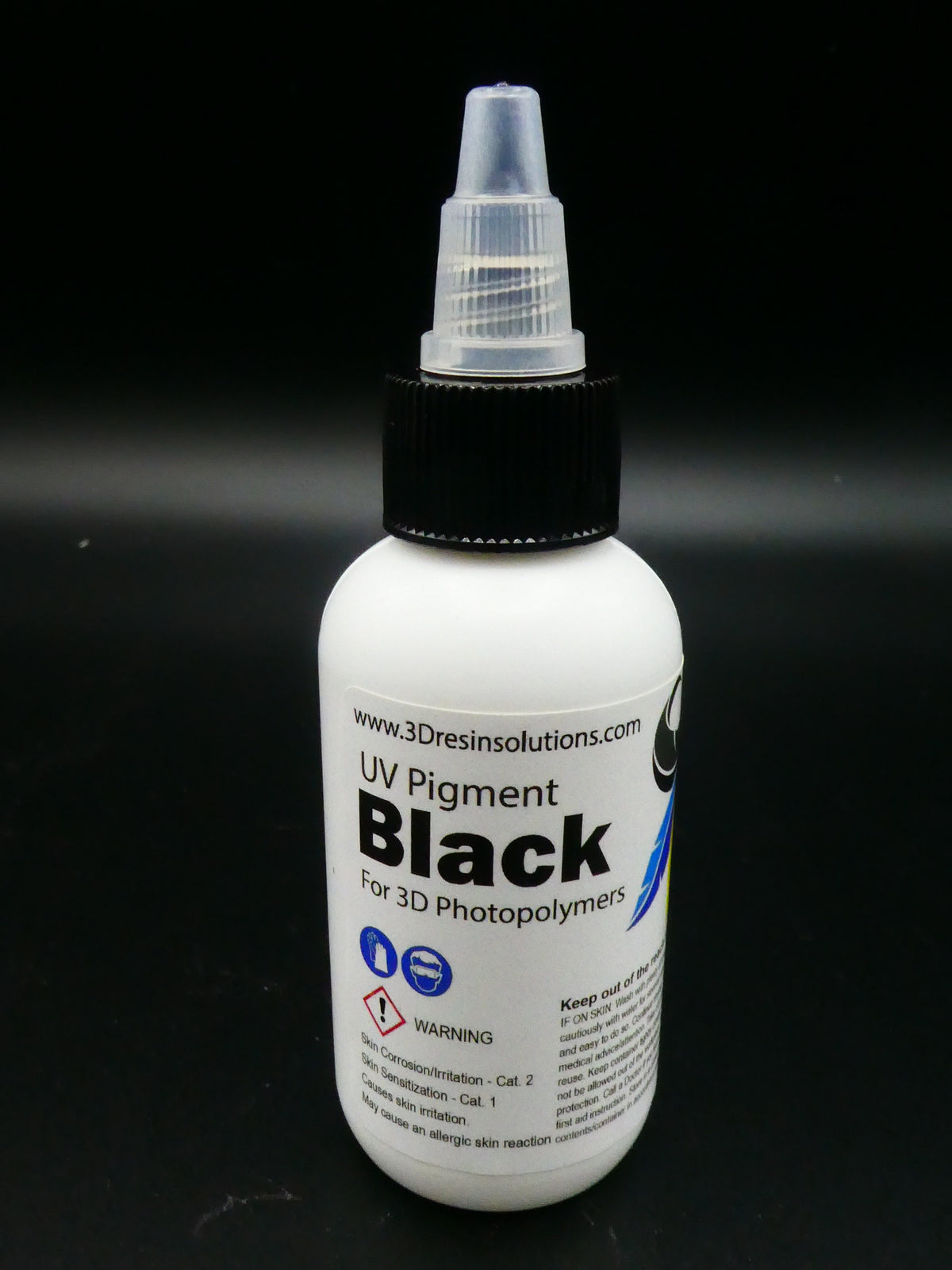

The CMYK+White 2oz bottle pigment set is designed to allow for custom blending of 3D Colors. We utilize light stable pigments to allow for long-lasting, brilliant colors. Use White to create unique opaque colors for high detail miniatures, terrain, home décor, and much more. Â
Our 3D pigments are dispersed in our custom blend U.V chemistry for easy incorporation into our 3DRS Color Base, HERO Clear, and/or Studio Clear.
Handle with care. These products should be handled with the same care as 3D Photopolymer. Always wear protective gloves and eye protection. Keep out of the reach of children.
Looking to Calibrate you resin? Check out our tutorial on calibrating your resin / printer combo with our 3DRS Starship Calibration Test - Click Here
Â
Â
Below is a quick overview, download a more complete excel spreadsheet of resin settings here.Â
General printer Settings |
Large Format |
Small - Medium Build |
Vroom Settings |
Bottom Layers | 12 | 8 | 8 |
Bottom Exposure Time | 35-45 | 35-45 | 35-45 |
Light Off-Delay | 1 | 1 | 0 |
Bottom Light-Off Delay | 1 | 1 | 0 |
Bottom Lift Distance | 12 | 8 | 8 |
Lift Distance | 10 | 7 | 7 |
Bottom Lift Speed | 40 | 65 | 65 |
Lifting Speed | 65 | 100 | 240 |
Retracting Speed | 100 | 150 | 240 |
General Post-Print ProceduresÂ
We recommend post cleaning your prints using clean, high purity 99% IPA (Isopropyl Alcohol). For Best results, utilize Vortex mixers or Ultrasonic Cleaners to quickly remove excess resin for a maximum of 10-15 minutes. Avoid leaving prints to soak for extended periods. See Table A for general absorption rates. (Always wear safety glasses and protective gloves when handling 3D Printing Resin).
Completely dry your piece before post curing. Be sure all sides of your print receive equal light exposure to avoid unequal shrinkage on the overexposed side. Unequal cure can damage or dis-form your print. For best results, post cure your print until the surface tack is removed - Extended cure times can increase tensile strength which may be ideal for hollowed prints. When the material is properly post cured, All sides of your print should have equal color and your piece should be noticeably harder.
Table A:Â Percent weight gain before post curing "Green Solvent Resistance". 1x1x1 cm cubes printed with Table A settings on Creality LD-002R then immersed in respective solvent for 15 minutes. The lower the absorption rate, the less likely the print will experience surface deformations.Â
IPA 99% | Â 0 - .82 % |
Acetone (not recommended) | 3.2 % |
Â
Please do not hesitate to Contact Us with any questions or comments you may have. If you have the perfect settings on a specific printer you would like us to add, we welcome your input.Â
